BP04 Professional Adjustable CO₂ Dual Stage Regulator, for Laboratory, Wine Preservation, Pest Control and Welding
BP04 Professional Adjustable CO₂ Dual Stage Regulator, for Laboratory, Wine Preservation, Pest Control and Welding
- Medium: N2, CO₂
- Outlet Pressure Range: 0~10psi, 0~15psi, 0~25psi, 0~50psi
- Inlet Port Thread: 3/8-24UNF, 1/2-20UNF, 5/8-18UNF
- Outlet Port Thread: 1/8NPT, Rc 1/8
- MOQ: 100 pieces
- OEM sample available for brands
The dual-stage pressure regulator is designed with two distinct pressure reduction stages. Initially, the high-pressure gas is reduced to a medium-low pressure in the first stage, and then further reduced to low pressure in the second stage. This design ensures precise and stable pressure output with a tolerance of only ±1 PSI. The regulator features a unique short adjustment stroke, allowing users to achieve the desired pressure with just a 3/4 turn. The preset maximum output pressure provides effective risk control, making it ideal for systems that need to manage significant pressure variations, such as large industrial production lines and high-pressure gas cylinders.
Specifications
| Model | |
|
|
| Body Material | 6061-T6 | Hsi59-0.5 | Stainless steel |
| Medium | N2, CO₂ | ||
| Operating Temperature | -30℃~65℃ | ||
| Outlet Pressure Range | 0~10psi, 0~15psi, 0~25psi, 0~50psi | ||
| Pressure Accuracy | ±1psi | ||
| Applicable Cylinders | 8g,16g,50g,74g disposable Gas Cylinders | ||
| Inlet Port Thread | 3/8-24UNF, 1/2-20UNF,5/8-18UNF | ||
| Outlet Port Thread | 1/8NPT, Rc 1/8 | ||
| Lubricant | TTA FMX(NSF) | ||
| Max. Working Inlet Pressure | 1200psi | 3000psi | 5000psi |
| Burst Pressure (Rupture Disc) | 3000psi | 5000psi | 7000psi |
-
Product Features
-
Overall Dimensions
-

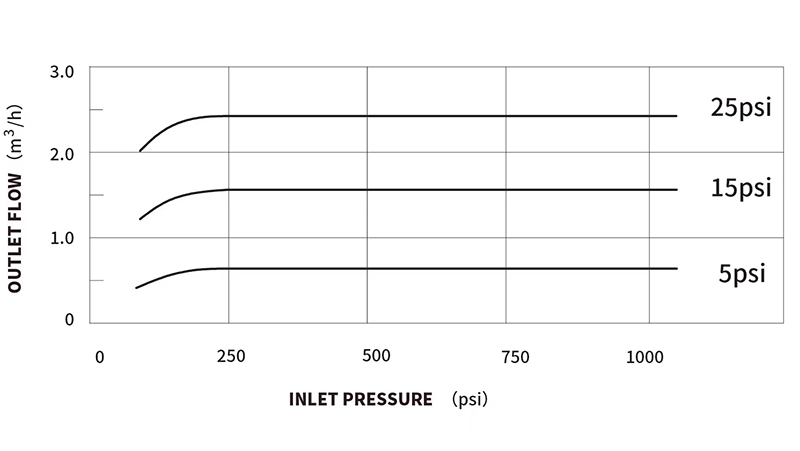

Flow Characteristic
-

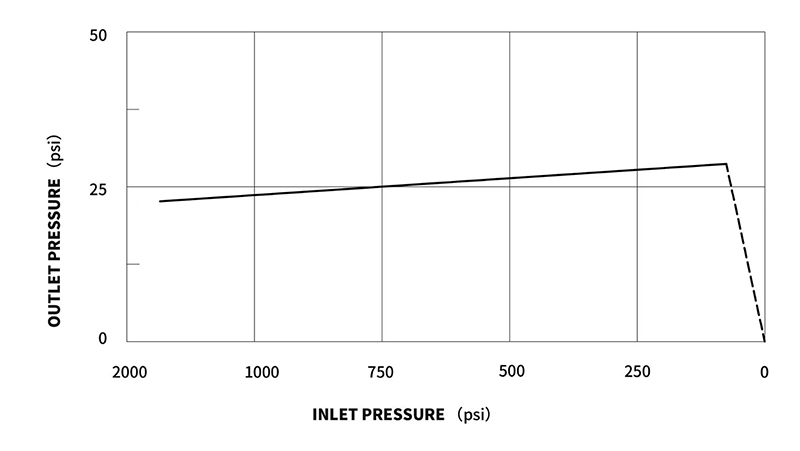

Pressure Characteristic

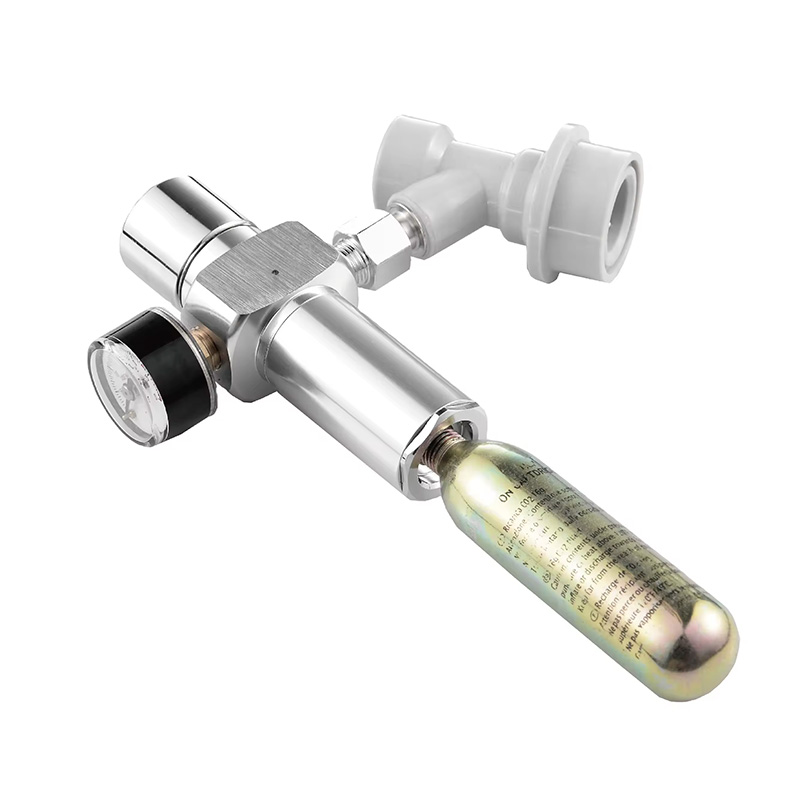

Application
